Oil Shale

What is Oil Shale?

U.S. Western oil shale is a fine-grained sedimentary rock which is very rich in organic sedimentary material called “kerogen.” The shale is heated to separate the kerogen from the rock and the resultant liquid is converted to superior quality jet fuel, diesel fuel, kerosene, and other high value products.

Worldwide, the oil shale resource base is estimated at 2.6 trillion barrels and is located in 26 countries [3]. About 2 trillion barrels, or a little over 75% of the world’s supply, is located within the U.S.[1] The richest, most concentrated deposits in the U.S. are found in the Green River Formation in western Colorado, eastern Utah, and southern Wyoming (see graph at right) [2].

Depending on technology and economics, as much as 800 billion barrels of oil equivalent could be recoverable from oil shale resources yielding greater than 25 gallons per ton [1]. For reference, 800 billion barrels is about 3 times the amount of proven oil reserves in Saudi Arabia. The energy potential from our vast resources of oil shale could substantially shift the balance of America’s oil supply away from the Persian Gulf.

Shell’s In-Situ Conversion Process

In Colorado, Shell is rejecting old mining techniques that failed in the past in favor of a process that heats the shale underground. Their in-situ conversion process (ICP) uses subsurface heaters to slowly heat the shale rock to 650 - 750 degrees Fahrenheit.  Once heated, the kerogen oil and gas are released from the shale and brought to the surface with traditional pumps (Picture, The Wall Street Journal). An advantage to the in-situ process is it significantly reduces (and in some cases eliminates) the environmental impacts from previous shale oil recovery methods [3]:

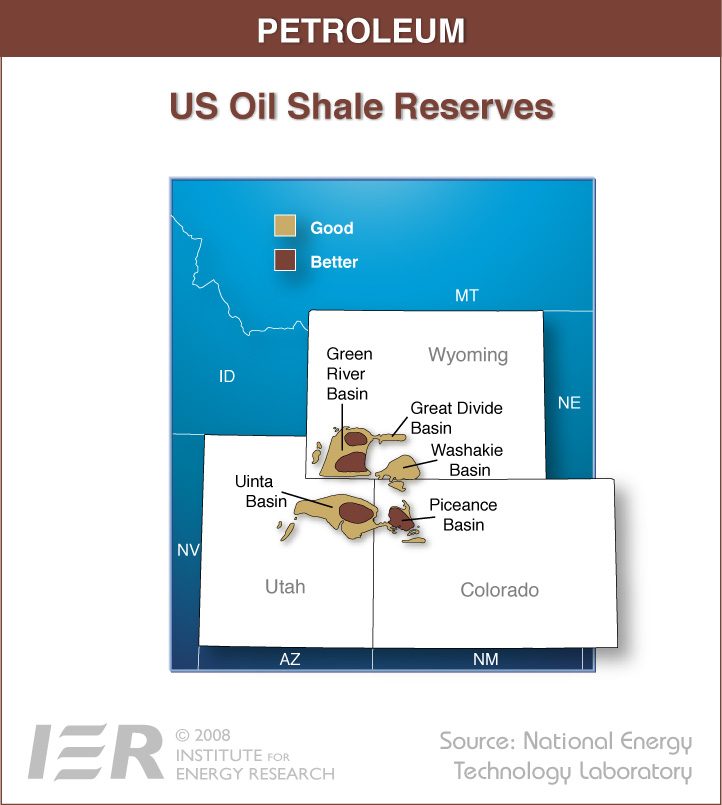

U.S. Oil Shale ReservesSource, USGS, EIA
  • The process involves no open-pit or subsurface mining
  • Does not produce thousands of tons of shale waste, as the traditional mining method does
  • Avoids groundwater contaminants via a “freeze wall” between the oil shale and water sources
  • Minimizes water use and unwanted byproducts

As is common with new manufacturing processes, operating costs can be expected to decrease over time, as experience leads to design enhancements and improved efficiency. Due to encouraging trial results in 2005, Shell is dramatically expanding its efforts with a more expansive research effort scheduled to run until 2010 [4].

Citations

1. Development of America’s Strategic Unconventional Fuels Resources, Task Force on Strategic Unconventional Fuels, September 2006, http://www.fossil.energy.gov/programs/reserves/npr/publications/sec369h_report_epact.pdf, Retrieved August 21, 2008.

2. Fact Sheet: U.S. Oil Shale Resources, DOE Office of Petroleum Reserves Strategic Unconventional Fuels, http://www.fossil.energy.gov/programs/reserves/npr/Oil_Shale_Resource_Fact_Sheet.pdf, Retrieved August 16, 2008.

3. “Is oil shale America’s answer to peak oil challenge?”, Oil and Gas Journal, August 9, 2004, http://www.fossil.energy.gov/programs/reserves/publications/Pubs-NPR/40010-373.pdf, Retrieved August 12, 2008.

4. Oil Shale, Colorado School of Mines, http://www.mines.edu/outreach/cont_ed/emfi/emfi2005/OilShale.pdf, Retrieved August 16, 2008.
